FEATURES
- Portable video microscope for examining installed fiber terminations, verifying smooth and clean end faces
- Inspects virtually any type of fiber optic termination with the appropriate adapters
- Includes six precision adapter tips for multimode and singlemode fiber end-face analysis, which attach easily to the end of the probe
- Additional adapter tips available for other termination types
- The monitor and probe feature intuitive controls for image focus, brightness level and battery indicator
- 5″ high-precision LCD monitor delivers real-time, high-resolution images of the connector end face at 250x magnification with no latency
- Protective elastomeric shell surrounds the monitor to guard against drops
Specifications
Parameter
Value
Magnification
250x
Resolution Ratio
0.5μm
Weight
1.5kg
Working Temp
20℃ ~ +50℃
Display Screen
3.5’’ TFT-Display Screen LCD
Video Output
NTSC / PAL
Power Supply
3.7V 4500mA / 5V 1A Li Battery
Storage Temp
-30℃ ~ +60℃
ADAPTERS
Adapters (included)
Adapters (optional)
25-U-M FC/SC/ST UPC male connectors
125-A-M LC/MU APC male connectors
125-U-M LC/MU UPC male connectors

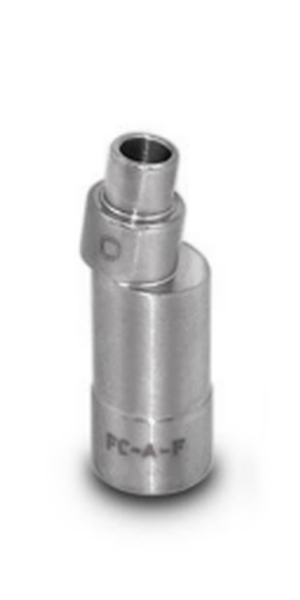

FC-A-F FC/APC female connectors
SC-PC-F SC/UPC female connectors
FC-P-F FC/UPC female connectors
LC-U-F LC/UPC female connectors
ST-U-F ST/UPC female connectors
25-A-M FC/SC/ST APC male connectors
LC-A-F LC/APC female connectors
SC-A-F SC/APC female connectors
Ordering Information
